Special Feature
Ventilation method: Closed, half-closed, half-open
Small and compact unit ideal for office based anesthesia
One-gas machine(O2 )
External CO2 circle absorber system
Vetilator (option): TH-1, TH-1 A
Main Unit
Tidal volume( Manual Mode): 20 ~ 1500ml
Gas pressure: 0.25 ~ 0.65Mpa
Flowmeter:
O2 :0.1 ~ 10L/min
APL valve: 0.5 ~ 6.0Kpa
O2 Flush: 25 ~ 75L/min
Optional:

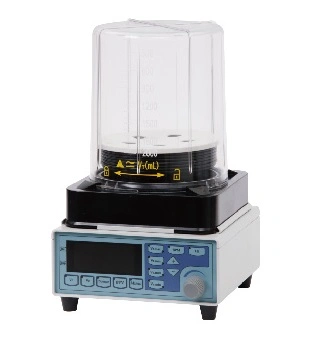

Ventilator TH-1
Special Feature
Driven mode: Pneumatically driven electronically controlled
Display: High light LED display
Ventilation mode: IPPV and Manual mode
Tidal volume: 50 ~ 1500ml
Breath frequency: 1~ 90Bpm
I:E ratio: 4:1 ~ 1:6
Monitor parameter: Tidal volume, breath frequency, MV, airway pressure
Alarm: MV high alarm,MV low alarm, TV high alarm, TV low alarm
Ventilator TH-1(A)
Special Feature
| Respiration mode | IPPV, SIMV, MAUAL |
| Display | 5.5' SNT screen |
| Waveform | P-t, V-t |
| Tidal volume | 50 ~ 1600ml |
| Breath frequency | 1~ 65Bpm |
| I:E ratio | 8:1 ~ 1:8 |
| Alarm parameters | High pressure alarm, Low pressure alarm |
| High pressure alarm limit | 20 ~ 60cmH2O |
| Low pressure alarm limit | 0 ~ 20cmH2O |
| Monitor parameter | Tidal volume, MV, Ppeak, PEEP, respiratory frequency, I:E ratio |
| Safety valve pressure limit | 6Kpa |
Good air tightness, high reliability, and minor respiration impedance

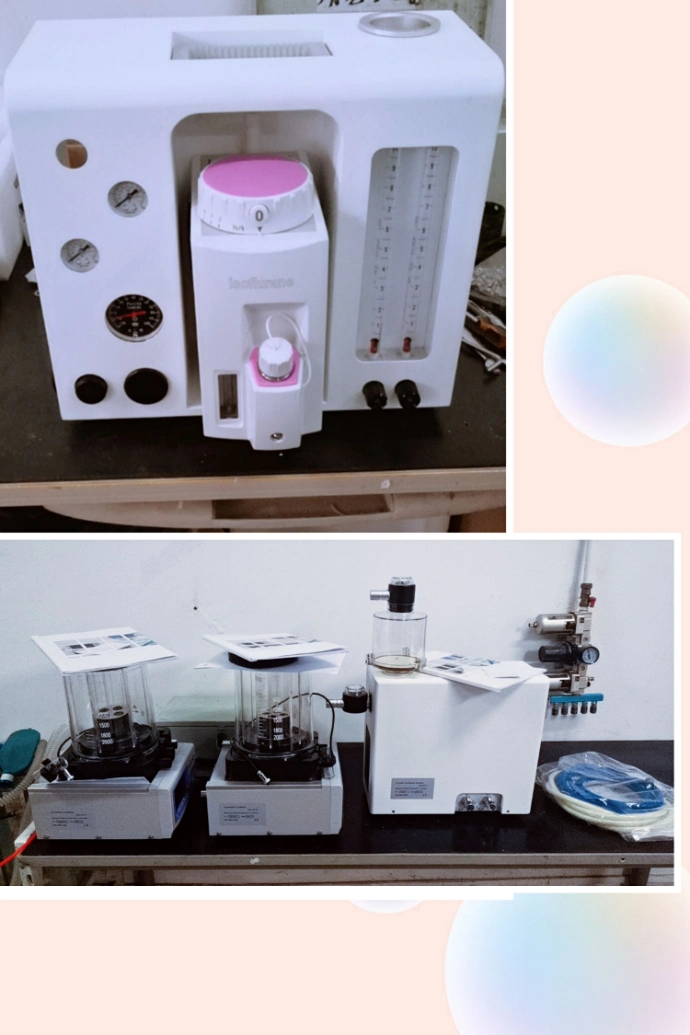

Real Pictures:
